10040
DESCRIPTION:
SCREW

Please login to download CAD files.

13013
DESCRIPTION:
Keeper of automatic lock 12013, surface mount, 2.062" C/L, #6 screw
CENTER LINE: 2.062
Patented
LOCKS: 12013,

Please login to download CAD files.

13032
DESCRIPTION:
Keeper that works automatic lock 12032
CENTER LINE: 1

Please login to download CAD files.

13033

Please login to download CAD files.

1511
DESCRIPTION:
NYLON KEEPER SKIRT
MATERIAL: ZINC

Please login to download CAD files.

28153
DESCRIPTION:
Impact Tilt Latch Keeper (L/R)
CENTER LINE: 0.551
SET BACK: 0.575

Please login to download CAD files.

31821.301
DESCRIPTION:
Composite sweep lock, 2.25" C/L, .47" throw, .43" setback, extended tongue, with glossy finish, round housing
MATERIAL: COMPOSITE
CENTER LINE: 2.25
SET BACK: 0.43
TYPE: Keeper, SWEEP LOCK
AVAILABLE QUANTITY: 30000.000000

Please login to download CAD files.

4220
DESCRIPTION:
Composite keeper, 2.062" C/L, rounded holes, surface mount, match with 4210
MATERIAL: COMPOSITE
CENTER LINE: 2.062

Please login to download CAD files.

4520_B

Please login to download CAD files.

4524_B

Please login to download CAD files.

4530
DESCRIPTION:
Composite keeper, 2.062" C/L, rounded holes, surface mount, match with 4310, 4320 locks
MATERIAL: COMPOSITE
CENTER LINE: 2.062

Please login to download CAD files.

81801
DESCRIPTION:
Face mount keeper, 1.004 C/L, round holes, match with 92271A and 9229
MATERIAL: COMPOSITE
Patented

Please login to download CAD files.

81811
DESCRIPTION:
Composite sash keeper, surface mount, 2.25" C/L, rounded holes, match with 31811 lock
MATERIAL: COMPOSITE
CENTER LINE: 2.25
LOCKS: 31811,

Please login to download CAD files.

8183
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 2.062" C/L, slotted holes, match with 3161 lock, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3161,

Please login to download CAD files.

8184
DESCRIPTION:
Keeper, face mount, .846" C/L, rounded holes, material SS304
CENTER LINE: 0.846

Please login to download CAD files.

8185
DESCRIPTION:
Keeper, face mount, .85" C/L, rounded holes, material SS304
CENTER LINE: 0.85

Please login to download CAD files.

8186
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 2.000" C/L, with same appearance as 8183 but has round holes, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062

Please login to download CAD files.

8186.005
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 2.000" C/L, with the same appearance as 8183 but has round holes, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
TYPE: Keeper
AVAILABLE QUANTITY: 58800.000000

Please login to download CAD files.

8186.109
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 2.000" C/L, with the same appearance as 8183 but has round holes, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
TYPE: Keeper
AVAILABLE QUANTITY: 44400.000000

Please login to download CAD files.

8186.301
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 2.000" C/L, with the same appearance as 8183 but has round holes, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
TYPE: Keeper
AVAILABLE QUANTITY: 51600.000000

Please login to download CAD files.

8187
DESCRIPTION:
Keeper, face mount, 2.244" C/L, match with 9812, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.244

Please login to download CAD files.

8188
DESCRIPTION:
Keeper, face mount, 1.000" C/L, wall thickness of 0.06", stainless steel, powder coated, similar with 8184, match with 9220S lock

Please login to download CAD files.

8194
DESCRIPTION:
Top mount keeper, 2.062" C/L, closed back & slotted holes match with 616 lock
MATERIAL: ZINC

Please login to download CAD files.

8195
DESCRIPTION:
Top mount keeper, 2.062" C/L, closed back, slotted holes & pronged,match with 617 lock
MATERIAL: ZINC

Please login to download CAD files.

8196
DESCRIPTION:
Top mount keeper, 2.250" C/L, closed back, slotted holes match with 3207, 3208 locks
MATERIAL: ZINC

Please login to download CAD files.

8197
DESCRIPTION:
Keeper, sash, recessed, 2.062" C/L, match with 3207, 3207PRM, 3207SMT, 3208, 3208PRM, 3208SMT
MATERIAL: ZINC

Please login to download CAD files.

8198
DESCRIPTION:
Recessed mounted keeper, 2.250" C/L, match with 3207, 3208 locks

Please login to download CAD files.

8200
DESCRIPTION:
Keeper, face mount, .85" C/L

Please login to download CAD files.

8201
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, match with 3212 lock, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3205, 3210B, 3211, 3212, 3213, 3218, 3222, 3225,

Please login to download CAD files.

8202
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 605, 610, 620, 680,

Please login to download CAD files.

8203
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3217, 3417,

Please login to download CAD files.

8205
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3205, 3206, 3211, 3212, 3213, 3222, 3225,

Please login to download CAD files.

8206
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, similar to 8201, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062

Please login to download CAD files.

8207
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, taller than 8202, and has different hole position, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1

Please login to download CAD files.

8207.005
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, taller than 8202, and has different hole position, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
TYPE: Keeper
AVAILABLE QUANTITY: 45600.000000

Please login to download CAD files.

8207.109
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, taller than 8202, and has different hole position, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
TYPE: Keeper
AVAILABLE QUANTITY: 42000.000000

Please login to download CAD files.

8207.301
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, taller than 8202, and has different hole position, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
TYPE: Keeper
AVAILABLE QUANTITY: 30000.000000

Please login to download CAD files.

8208
DESCRIPTION:
Keeper, sash, face mount, #6 screw, .744" C/L, keep bottom pair of holes of 8202, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.744

Please login to download CAD files.

8209
DESCRIPTION:
Keeper, sash, face mount, #6 screw, .744"" C/L, increased the thickness of 8208, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.744

Please login to download CAD files.

8210
DESCRIPTION:
Recessed Keeper 1.624" CL
CENTER LINE: 1.624

Please login to download CAD files.

8211
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3205, 3211, 3212, 3225,

Please login to download CAD files.

8212
DESCRIPTION:
Keeper, sash, surface mount, #8 screw, 2.091" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3205, 3211, 3212, 3213, 3222, 3225,

Please login to download CAD files.

8213
DESCRIPTION:
Keeper, sash, surface mount, #5 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3205, 3211, 3212, 3213, 3222, 3225,

Please login to download CAD files.

8214
DESCRIPTION:
Keeper, sash, face mount, #8 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3205, 3210B, 3211, 3212, 3213, 3214, 3218, 3222, 3225, 3226, 3290,

Please login to download CAD files.

8216
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
KIT: 704
LOCKS: 3205, 3206, 3211, 3212, 3213, 3222, 3225,

Please login to download CAD files.

8217
DESCRIPTION:
Top mount keeper,2.062" C/L, open back
LOCKS: 3205, 3206, 3211, 3212, 3213, 3222, 3225,

Please login to download CAD files.

8219
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3205,

Please login to download CAD files.

8220
DESCRIPTION:
Keeper, sash, surface mount, #8 screw, 2.213" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.188

Please login to download CAD files.

8221
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, match with 3621, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3621,

Please login to download CAD files.

8222
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, match with 3621, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3621,

Please login to download CAD files.

8223
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, match with 3621, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3621,

Please login to download CAD files.

8224
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, match with 3621
CENTER LINE: 2.062
LOCKS: 3621,

Please login to download CAD files.

8226
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.175" C/L, open back, match with 3226 / 3286 / 3296 locks, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.175
LOCKS: 3226, 3227, 3280, 3286, 3288,

Please login to download CAD files.

8226SL
DESCRIPTION:
Keeper, sash, surface mount, 2.169" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.138
LOCKS: 3226SL,

Please login to download CAD files.

8227
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3220, 3280, 3288, 3290, 3299, 9210, 9218, 9220, 9228,

Please login to download CAD files.

8229
DESCRIPTION:
Keeper, sash, surface mount, 2.11" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.11
LOCKS: 3228, 3229,

Please login to download CAD files.

8231
DESCRIPTION:
Top mount keeper, 1.000" C/L

Please login to download CAD files.

8232
DESCRIPTION:
Keeper with open back
MATERIAL: ZINC

Please login to download CAD files.

8238
DESCRIPTION:
Top Mount Open Back Keeper, 2.205"C/L
CENTER LINE: 2.205

Please login to download CAD files.

8239
DESCRIPTION:
Top Mount Keeper, 2.185"C/L
CENTER LINE: 2.185

Please login to download CAD files.

8243
DESCRIPTION:
Face Mount Impact Keeper, 1.575" C/L
CENTER LINE: 1.575

Please login to download CAD files.

8250
DESCRIPTION:
Top Mount Keeper, 1.811" C/L
CENTER LINE: 1.811

Please login to download CAD files.

8251
DESCRIPTION:
Top mount keeper,1.875" C/L, zinc, match with 3252L&R lock

Please login to download CAD files.

8252
DESCRIPTION:
Face mount keeper,.750” C/L, zinc, match with 3253L&R lock

Please login to download CAD files.

8253
DESCRIPTION:
Keeper, sash, face mount, zinc, match with 3253A-L&R lock
MATERIAL: ZINC
CENTER LINE: 1.5

Please login to download CAD files.

8254
DESCRIPTION:
Top mounted keeper that is a match with 3252-L&R
CENTER LINE: 1

Please login to download CAD files.

8255
DESCRIPTION:
Keeper,surface mount,C/L 2.062, #6 screw used, matches with 3253A-L&R
MATERIAL: ZINC
CENTER LINE: 2.062

Please login to download CAD files.

8256
DESCRIPTION:
Recessed facemount keeper that matches with 3271-L&R or 3273
CENTER LINE: 1

Please login to download CAD files.

8261
DESCRIPTION:
Face mount keeper,2.062" C/L, match with 3261L&R, 3215 locks
MATERIAL: ZINC
KIT: 704

Please login to download CAD files.

8262
DESCRIPTION:
Keeper, sash, surface mount, #10 screw, 2.232" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.232
LOCKS: 3226,

Please login to download CAD files.

8263
DESCRIPTION:
Face mount keeper,0.75“ C/L, match with 3262L&R lock
MATERIAL: ZINC

Please login to download CAD files.

8264
DESCRIPTION:
Face mount keeper,0.75“ C/L, match with 3263L&R lock
MATERIAL: ZINC

Please login to download CAD files.

8266
DESCRIPTION:
Face Mount Keeper, 0.75" C/L
CENTER LINE: 0.75

Please login to download CAD files.

8267
DESCRIPTION:
Face Mount Keeper, 1.181" C/L
CENTER LINE: 1.181

Please login to download CAD files.

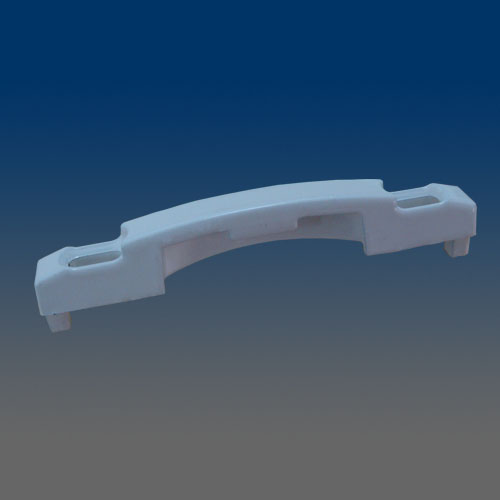

8268
DESCRIPTION:
Face Mount Keeper, 2.055" C/L
CENTER LINE: 2.055

Please login to download CAD files.

8271
DESCRIPTION:
Face mount keeper,1.375" C/L
MATERIAL: ZINC

Please login to download CAD files.

8272
DESCRIPTION:
Keeper with closed back
MATERIAL: ZINC
CENTER LINE: 2
LOCKS: 3280F,

Please login to download CAD files.

8272.002
DESCRIPTION:
Keeper with closed back
MATERIAL: ZINC
CENTER LINE: 2
TYPE: Keeper
LOCKS: 3280F,
AVAILABLE QUANTITY: 50400.000000

Please login to download CAD files.

8272.009
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.22" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2
TYPE: Keeper
LOCKS: 3280F,
AVAILABLE QUANTITY: 30000.000000

Please login to download CAD files.

82731
DESCRIPTION:
Top mount keeper,2.25" C/L, 0.285" thickness, closed back,
MATERIAL: ZINC
CENTER LINE: 2.25

Please login to download CAD files.

82741
DESCRIPTION:
Top mount keeper,2.25" C/L, 0.375" thickness, closed back
MATERIAL: COMPOSITE

Please login to download CAD files.

8275
DESCRIPTION:
Recessed Keeper, 2.205" C/L
CENTER LINE: 2.205

Please login to download CAD files.

8277
DESCRIPTION:
Face Mount Keeper, 1.378” C/L
CENTER LINE: 1.378

Please login to download CAD files.

8279

Please login to download CAD files.

8280
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 3210B, 3218, 3220, 3280, 32802, 3288, 3289, 3290, 3299,

Please login to download CAD files.

8281
DESCRIPTION:
Face mount keeper, #6 screw used
MATERIAL: ZINC
LOCKS: 3205, 3210B, 3212, 3213, 3214, 3218, 3220, 3221, 3222, 3228, 3280, 3288, 3290, 3299, 9210, 9220,

Please login to download CAD files.

8283
DESCRIPTION:
Recessed keeper, 2.040" C/L
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3205, 3210B, 3211, 3212, 3213, 3214, 3218, 3220, 3222, 3225, 3226, 3280, 3288, 3290, 3299, 9210, 9220, 9287, 9825,

Please login to download CAD files.

82831
DESCRIPTION:
Recessed Composite Keeper, 2.141" C/L
CENTER LINE: 2.141

Please login to download CAD files.

82831.005
DESCRIPTION:
Composite sash keeper, recessed, 2.141" C/L,
CENTER LINE: 2.141
TYPE: Keeper
AVAILABLE QUANTITY: 172000.000000

Please login to download CAD files.

82831.102
DESCRIPTION:
Composite sash keeper, recessed, 2.141" C/L,
CENTER LINE: 2.141
TYPE: Keeper
AVAILABLE QUANTITY: 48000.000000

Please login to download CAD files.

82831.108
DESCRIPTION:
Composite sash keeper, recessed, 2.141" C/L,
CENTER LINE: 2.141
TYPE: Keeper
AVAILABLE QUANTITY: 168000.000000

Please login to download CAD files.

8284
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 3280, 3280F, 3288, 3290,

Please login to download CAD files.

8285
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25

Please login to download CAD files.

8286
DESCRIPTION:
Face mount keeper,2.25" C/L
MATERIAL: ZINC
LOCKS: 3205, 3210B, 3211, 3212, 3213, 3214, 3218, 3220, 3222, 3225, 3226, 3280, 3286, 3288, 3290, 3299, 9210, 9220, 9287,

Please login to download CAD files.

8287
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 3210B, 3218, 3220, 3280, 3288, 3290, 3299,

Please login to download CAD files.

8288
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, with pegs at the bottom, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 3226,

Please login to download CAD files.

8289
DESCRIPTION:
Keeper, sash, face mount, #5 screw, .77" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.77
LOCKS: 3205, 3210B, 3212, 3213, 3214, 3218, 3220, 3222, 3280, 3280F, 3288, 3290, 3299, 9210, 9218, 9220, 9228,

Please login to download CAD files.

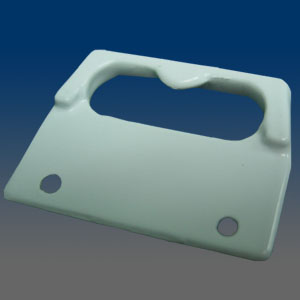

8290
DESCRIPTION:
SASH KEEPER,FACE MOUNT,1" C/L,#4 SCREW
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3205, 3210B, 3212, 3213, 3218, 3220, 3222, 3280, 3288, 3290, 3299, 3380, 3390, 3512, 3513, 9210, 9220, 9410, 9420,

Please login to download CAD files.

8290.604
DESCRIPTION:
Keeper, sash, face mount, #4 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
TYPE: Keeper
LOCKS: 3205, 3210B, 3212, 3213, 3218, 3220, 3222, 3280, 3288, 3290, 3299, 3380, 3390, 3512, 3513, 9210, 9220, 9410, 9420,
AVAILABLE QUANTITY: 38400.000000

Please login to download CAD files.

8291
DESCRIPTION:
Keeper, sash, surface mount, #5 screw, 2.22" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.22
LOCKS: 3226, 3286,

Please login to download CAD files.

8292
DESCRIPTION:
Keeper, sash, face mount, #8 screw, .866" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.866
LOCKS: 3205, 3210B, 3212, 3213, 3214, 3218, 3220, 3222, 3280, 3288, 3290, 3299, 9210, 9220, 9228,

Please login to download CAD files.

8293
DESCRIPTION:
SASH KEEPER,FACE MOUNT,1.00" C/L,#6 SCREW(EURO WHITE)
MATERIAL: ZINC
CENTER LINE: 1

Please login to download CAD files.

8295
DESCRIPTION:
Keeper, sash, face mount, #4 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
KIT: 701, 702
LOCKS: 9817S,

Please login to download CAD files.

8296
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 3289,

Please login to download CAD files.

8297
DESCRIPTION:
Keeper with open back and with hook legs
CENTER LINE: 2

Please login to download CAD files.

8299
DESCRIPTION:
Keeper, sash, face mount, #5 screw, .77" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.77

Please login to download CAD files.

8380
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 3380, 3388, 3390,

Please login to download CAD files.

8381
DESCRIPTION:
Keeper, sash, surface mount, #8 screw, 2.25" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 3380, 3388, 3390,

Please login to download CAD files.

8382
DESCRIPTION:
Keeper, sash, surface mount, #8 screw, 2.25" C/L, closed back, beveled bottom, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25

Please login to download CAD files.

8384
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, elongated screw hole based on 8380, open back, match with 3390GK, material: zinc alloy,C/L 2.311"
MATERIAL: ZINC

Please login to download CAD files.

8410
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062

Please login to download CAD files.

8411
DESCRIPTION:
Closed Back Face Mount Keeper, 2.062" C/L
CENTER LINE: 2.062

Please login to download CAD files.

8420
DESCRIPTION:
Keeper, sash, surface mount and #8 screw, 2.205" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.205
KIT: 702
LOCKS: 3221, 3228, 3410, 3418, 3420, 3428, 3480, 3488, 9410, 9418, 9420,

Please login to download CAD files.

8421
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3205, 3210B, 3212, 3213, 3214, 3218, 3220, 3221, 3222, 3222S, 3280, 3288, 3290, 3299, 3410, 3420, 3480, 9210, 9220, 9410, 9420,

Please login to download CAD files.

8422
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.22" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.22
LOCKS: 3410, 3418, 3420, 3480, 9410, 9418, 9420,

Please login to download CAD files.

8422.002
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.22" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.22
TYPE: Keeper
LOCKS: 3410, 3418, 3420, 3480, 9410, 9418, 9420,
AVAILABLE QUANTITY: 34800.000000

Please login to download CAD files.

8423
DESCRIPTION:
Keeper, sash, surface mount, #8 screw, 2.25" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 3410, 3420, 3480, 9410, 9420,

Please login to download CAD files.

8424
DESCRIPTION:
Keeper, sash, face mount, #5 screw, .433" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.433

Please login to download CAD files.

8425
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.181" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.181
LOCKS: 9485, 9485LH,

Please login to download CAD files.

8426
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.181" C/L, closed back, material: zinc alloy, match with 3424
MATERIAL: ZINC
CENTER LINE: 2.181
LOCKS: 3424, 3424LH,

Please login to download CAD files.

8427
DESCRIPTION:
Keeper, sash, surface mount
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 9721, 9722,

Please login to download CAD files.

8500
DESCRIPTION:
Keeper, sash, surface mount, #5 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3505, 3512, 3513, 3522,

Please login to download CAD files.

8503
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3505, 3512, 3513, 3522,

Please login to download CAD files.

8504
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
KIT: 703
LOCKS: 3505, 3512, 3513, 3522,

Please login to download CAD files.

8521
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3205, 3210B, 3212, 3213, 3214, 3218, 3220, 3222, 3280, 3288, 3290, 3299, 3380, 3390, 3480, 3505, 3512, 3513, 9210, 9220, 9410, 9417, 9420,

Please login to download CAD files.

8522
DESCRIPTION:
Keeper, sash, face mount, #10 screw, .88" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.88
LOCKS: 3205, 3210B, 3212, 3213, 3214, 3218, 3220, 3280, 3288, 3290, 3299, 3380, 3390, 3505, 3512, 3513, 9210, 9220,

Please login to download CAD files.

8524
DESCRIPTION:
Keeper, sash, face mount, #10 screw, .43" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.43
LOCKS: 3205, 3210B, 3212, 3213, 3214, 3218, 3220, 3222, 3280, 3288, 3290, 3299, 3380, 3410, 3420, 3505, 3512, 3513, 3522, 9210, 9220,

Please login to download CAD files.

8525
DESCRIPTION:
Keeper, sash, face mount, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1

Please login to download CAD files.

8526
DESCRIPTION:
Keeper, sash, face mount, #10 screw, .44" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.44
LOCKS: 3205, 3210B, 3212, 3213, 3214, 3218, 3220, 3222, 3280, 3288, 3290, 3299, 9210, 9220,

Please login to download CAD files.

8527
DESCRIPTION:
Face mount keeper, 1" C/L, match 3226SL
MATERIAL: ZINC

Please login to download CAD files.

8561
DESCRIPTION:
Keeper, sash, surface mount, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3505, 3512, 3513, 3522,

Please login to download CAD files.

8562
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
SET BACK: 0.043
LOCKS: 3505, 3512, 3513, 3522,

Please login to download CAD files.

8563
DESCRIPTION:
Keeper, sash, surface mount, 2.062" C/L, match with 3222S sash lock, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3222S, 3505, 3512, 3513, 3522,

Please login to download CAD files.

8564
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062

Please login to download CAD files.

8565
DESCRIPTION:
Keeper, sash, surface mount, #8 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3514,

Please login to download CAD files.

8587
DESCRIPTION:
Keeper, sash, face mount, .866" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 0.866
LOCKS: 3514S,

Please login to download CAD files.

8588A
DESCRIPTION:
Zinc Keeper with angled mounting holes.
MATERIAL: ZINC
CENTER LINE: 1.3

Please login to download CAD files.

8594
DESCRIPTION:
Keeper for LPI Locks
MATERIAL: ZINC
CENTER LINE: 2.244
LOCKS: 642, 643,

Please login to download CAD files.

9310
DESCRIPTION:
Keeper, sash, surface mount, #8 screw, 2" C/L, closed back, match with 9205 sash lock, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2
LOCKS: 9205R, 9205SB, 9206R, 9206SB,

Please login to download CAD files.

9311
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 9705, 9710, 9720,

Please login to download CAD files.

9312
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, match 9710, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3225, 3226, 9287, 9705, 9710, 9720,

Please login to download CAD files.

9313
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, match with 9721 sash lock, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 9721, 9722,

Please login to download CAD files.

9313A
DESCRIPTION:
Sash Keeper
MATERIAL: ZINC

Please login to download CAD files.

9313ABG
DESCRIPTION:
Keeper with angled screw holes
MATERIAL: ZINC
TYPE: Keeper

Please login to download CAD files.

9313B
DESCRIPTION:
Keeper with angled screw holes
MATERIAL: ZINC

Please login to download CAD files.

9314
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, match with 9820 sash lock, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1

Please login to download CAD files.

9315
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 3287, 9227,

Please login to download CAD files.

9315A
DESCRIPTION:
Face Mount Keeper withslotted hole, 0.749" C/L
CENTER LINE: 0.749

Please login to download CAD files.

9315BG
DESCRIPTION:
Face Mount Keeper withslotted hole, 0.749" C/L
CENTER LINE: 0.749
TYPE: Keeper

Please login to download CAD files.

9316
DESCRIPTION:
Keeper, sash, face mount, #8 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 9417,

Please login to download CAD files.

9317
DESCRIPTION:
Face mount keeper,1" C/L
MATERIAL: ZINC
TYPE: Clearance, Keepers
LOCKS: 3211, 3225, 3226, 9286, 9417,

Please login to download CAD files.

9318
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1

Please login to download CAD files.

9319
DESCRIPTION:
Keeper, sash, surface mount, 2.062" C/L, open back, match with 9706 sash lock, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062

Please login to download CAD files.

9321
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1

Please login to download CAD files.

9322
DESCRIPTION:
Keeper, sash, face mount, #5 screw, 1.87" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1.87

Please login to download CAD files.

9323
DESCRIPTION:
Keeper, sash, face mount, #6 screw, 1.65" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1.65
LOCKS: 9810,

Please login to download CAD files.

9324A
DESCRIPTION:
Face mount keeper,1.614" C/L, match with 9820 lock
MATERIAL: ZINC

Please login to download CAD files.

9325
DESCRIPTION:
Keeper, sash, face mount, #5 screw, 1.681" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1.681

Please login to download CAD files.

9326
DESCRIPTION:
Keeper, sash, face mount, #5 screw, 1.556" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1.556

Please login to download CAD files.

9327
DESCRIPTION:
Keeper, sash, recessed mount, #8 screw, 1.655" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1.655
KIT: 705
LOCKS: 9811,

Please login to download CAD files.

9328
DESCRIPTION:
Keeper, sash, face mount, #5 screw, 1.598" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1.598

Please login to download CAD files.

9328DB
DESCRIPTION:
Keeper, sash, face mount, #5 screw, 1.598" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1.598
TYPE: Keeper

Please login to download CAD files.

9330
DESCRIPTION:
Top mount keeper,2.25" C/L, closed back, match with 9730 lock
MATERIAL: ZINC

Please login to download CAD files.

9331
DESCRIPTION:
Keeper, sash, face mount, #8 screw, 1" C/L, match with 611, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1
LOCKS: 606, 611, 611SL, 621, 681,

Please login to download CAD files.

9331A
DESCRIPTION:
Face mounted keeper
MATERIAL: ZINC
CENTER LINE: 0.75

Please login to download CAD files.

9333
DESCRIPTION:
Keeper, sash, face mount, two sets of screw holes, match with 9227, material: zinc alloy
MATERIAL: ZINC

Please login to download CAD files.

9334
DESCRIPTION:
Keeper, sash, face mount, two sets of screw holes, match with 9730, material: zinc alloy
MATERIAL: ZINC

Please login to download CAD files.

9335
DESCRIPTION:
Keeper, sash, face mount, match with 9227, material: zinc alloy
MATERIAL: ZINC

Please login to download CAD files.

9337
DESCRIPTION:
Keeper, sash, face mount, 1" C/L, similar with 9336, match with 3620, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1

Please login to download CAD files.

9338
DESCRIPTION:
Face mount keeper,1" C/L,similar to 9321
MATERIAL: ZINC

Please login to download CAD files.

9339
DESCRIPTION:
Keeper, sash, face mount, 1.000" C/L, match with 3622, zinc, strength version of 9337, zinc alloy

Please login to download CAD files.

9340
DESCRIPTION:
Keeper, sash, surface mount, 2.000" C/L, closed back, #8 screw, similar to 9310, match with lock 4420, zinc alloy

Please login to download CAD files.

9341
DESCRIPTION:
Face mount keeper,1.15"C/L,match with 4430 lock
MATERIAL: ZINC

Please login to download CAD files.

9342
DESCRIPTION:
Face mount keeper,0.75“C/L, match with 9720 lock
MATERIAL: ZINC

Please login to download CAD files.

9344
DESCRIPTION:
Face Mount Keeper, 1.15“C/L
CENTER LINE: 1.15

Please login to download CAD files.

9345
DESCRIPTION:
Keeper, match with 619 lock
MATERIAL: ZINC

Please login to download CAD files.

9346.005
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.085" C/L, closed back, material: zinc alloy
TYPE: Keeper
AVAILABLE QUANTITY: 59988

9350
DESCRIPTION:
Keeper, sash, recessed surface mount, for 600 series hooded lock, #8 screw, 2.079" C/L, material: zinc alloy
TYPE: Keepers
Patented
LOCKS: 605, 610, 620, 680,

Please login to download CAD files.

9351
DESCRIPTION:
Keeper, sash, surface mount, "seesure", for 600 series non-hooded lock, #8 screw, 2.062" C/L, material: zinc alloy and Mn
MATERIAL: ZINC
CENTER LINE: 2.062
Patented
LOCKS: 606, 611, 621, 681,

Please login to download CAD files.

9352
DESCRIPTION:
Keeper, sash, recessed surface mount, for 600 series hooded lock, 2.062" C/L, # 6 screw-base and #4 screw-head, material: zinc alloy
TYPE: Keepers
LOCKS: 605, 610, 620, 680, 683,

Please login to download CAD files.

9353
DESCRIPTION:
Keeper, sash, surface mount, for 600 series non-hooded lock, #6 screw, 2.126" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.126
LOCKS: 611SL,

Please login to download CAD files.

9354
DESCRIPTION:
Keeper, sash, face mount, for 600 series non-hooded lock, #8 screw, 1" C/L, material: zinc alloy
TYPE: Keepers
LOCKS: 606, 611, 621, 681,

Please login to download CAD files.

9356
DESCRIPTION:
Keeper, sash, surface mount, for non-hooded 600 series hooded lock, #6 screw, 2.062" C/L, closed back, material: zinc alloy
TYPE: Keepers
LOCKS: 606, 611, 621, 681,

Please login to download CAD files.

9357
DESCRIPTION:
Keeper, sash, surface mount, for 600 series hooded lock, #6 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 606, 611, 621, 681,

Please login to download CAD files.

9358
DESCRIPTION:
Keeper, sash, surface mount, for 600 series hooded lock, #6 screw, 2.029" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.029
Patented
LOCKS: 605, 610, 620, 680,

Please login to download CAD files.

9359
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.126" C/L, open back, material: zinc alloy, match with both 611SL (non-hooded)
MATERIAL: ZINC
CENTER LINE: 2.126
LOCKS: 611SL,

Please login to download CAD files.

9360
DESCRIPTION:
Keeper, sash, surface mount, based on 9353, but with closed back and round holes, 2.062" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 3621,

Please login to download CAD files.

9360.006
DESCRIPTION:
Keeper, sash, surface mount, based on 9353, but with closed back and round holes, 2.062" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
TYPE: Keeper
LOCKS: 3621,
AVAILABLE QUANTITY: 60000.000000

Please login to download CAD files.

9362
DESCRIPTION:
Top mount keeper,2.126" C/L, closed back, elongated hole, match with 600 series lock
MATERIAL: ZINC

Please login to download CAD files.

9364
DESCRIPTION:
Face Mount Keeper, 1.418" C/L
CENTER LINE: 1.418

Please login to download CAD files.

9370
DESCRIPTION:
Keeper, sash, recessed surface mount, #6 screw, 1.625" C/L, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 1.625
LOCKS: 9823,

Please login to download CAD files.

9371
DESCRIPTION:
"Keeper, sash, surface mount, #6 screw, 2.062"" C/L, closed back, material: zinc alloy match with locks 9420 and 3420"
MATERIAL: ZINC
CENTER LINE: 2.062

Please login to download CAD files.

9373
DESCRIPTION:
Recesed mounted keeper,1.622 C/L, match with 9825 lock
MATERIAL: ZINC

Please login to download CAD files.

9381
DESCRIPTION:
Top Mount Keeper, 2.25" C/L
CENTER LINE: 2.25
TYPE: Keeper
LOCKS: 3210B, 3218, 3291, 3299, 9210, 9218, 9220, 9228,

Please login to download CAD files.

9381VBG
DESCRIPTION:
Top Mount Keeper, 2.25" C/L
CENTER LINE: 2.25
TYPE: Keeper
LOCKS: 3210B, 3218, 3291, 3299, 9210, 9218, 9220, 9228,

Please login to download CAD files.

9382
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, closed back, material: zinc alloy, match with 9280 lock
TYPE: Keepers
LOCKS: 9280,

Please login to download CAD files.

9383
DESCRIPTION:
Keeper, sash, surface mount, #5 screw, 2.22" C/L, closed back, material: zinc alloy, pronged
MATERIAL: ZINC
CENTER LINE: 2.22
LOCKS: 9410, 9418, 9420, 9428,

Please login to download CAD files.

9383BW
DESCRIPTION:
Keeper, sash, surface mount, #5 screw, 2.22" C/L, closed back, material: zinc alloy, pronged
MATERIAL: ZINC
CENTER LINE: 2.22
TYPE: Keeper
LOCKS: 9410, 9418, 9420, 9428,

Please login to download CAD files.

9384
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, closed back, material: zinc alloy, pronged, match with 690 series
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 690, 690LH,

Please login to download CAD files.

9385
DESCRIPTION:
Keeper, sash, surface mount, #5 screw, 2.126" C/L, closed back, material: zinc alloy, pronged
MATERIAL: ZINC
CENTER LINE: 2.126
LOCKS: 3410, 3418, 3420, 3428, 3480, 3488, 9410, 9418, 9420, 9428,

Please login to download CAD files.

9386
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, pronged, material: zinc alloy, match with 9721 lock
MATERIAL: ZINC
CENTER LINE: 2.062

Please login to download CAD files.

9386A
DESCRIPTION:
Top Mount Keeper, 2.062" C/L
CENTER LINE: 2.062

Please login to download CAD files.

9387
DESCRIPTION:
Top mount keeper, 2.25" C/L, open back
MATERIAL: ZINC
LOCKS: 9217, 9287,

Please login to download CAD files.

9388
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
LOCKS: 9417,

Please login to download CAD files.

9388DBW
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.062" C/L, closed back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.062
TYPE: Keeper
LOCKS: 9417,

Please login to download CAD files.

9389
DESCRIPTION:
Keeper, sash, surface mount, #6 screw, 2.25" C/L, open back, material: zinc alloy
MATERIAL: ZINC
CENTER LINE: 2.25
LOCKS: 9217,

Please login to download CAD files.

9392
MATERIAL: ZINC
CENTER LINE: 2.126

Please login to download CAD files.

9395
DESCRIPTION:
Top mount keeper, 2.062" C/L, open back, match with 9706 lock
MATERIAL: ZINC

Please login to download CAD files.

keepers

Keepers

10040

DESCRIPTION:

13013

DESCRIPTION:

13032

DESCRIPTION:

13033

1511

DESCRIPTION:

28153

DESCRIPTION:

31821.301

DESCRIPTION:

4220

DESCRIPTION:

4520_B

4524_B

4530

DESCRIPTION:

81801

DESCRIPTION:

81811

DESCRIPTION:

8183

DESCRIPTION:

8184

DESCRIPTION:

8185

DESCRIPTION:

8186

DESCRIPTION:

8186.005

DESCRIPTION:

8186.109

DESCRIPTION:

8186.301

DESCRIPTION:

8187

DESCRIPTION:

8188

DESCRIPTION:

8194

DESCRIPTION:

8195

DESCRIPTION:

8196

DESCRIPTION:

8197

DESCRIPTION:

8198

DESCRIPTION:

8200

DESCRIPTION:

8201

DESCRIPTION:

8202

DESCRIPTION:

8203

DESCRIPTION:

8205

DESCRIPTION:

8206

DESCRIPTION:

8207

DESCRIPTION:

8207.005

DESCRIPTION:

8207.109

DESCRIPTION:

8207.301

DESCRIPTION:

8208

DESCRIPTION:

8209

DESCRIPTION:

8210

DESCRIPTION:

8211
