Jamb Adjusters

Email Catalog Product Category Catalog
  • 1040-jambadjusters-plastic

    1040

  • 1040-41B-jambadjusters-plastic

    1040-41B

  • 1040S-jambadjusters-plastic

    1040S

  • 1041B-jambadjusters-plastic

    1041B

  • 1049-jambadjusters-plastic

    1049

  • Concept 3200A

  • Concept 3200B

  • 1040

  • DESCRIPTION:
    Nut, ShimTech, plastic, 3/8-16 x .59"
  • MATERIAL: PLASTIC
  • Patented
1040-jambadjusters-plastic
pdf_dowload

Please login to download CAD files.

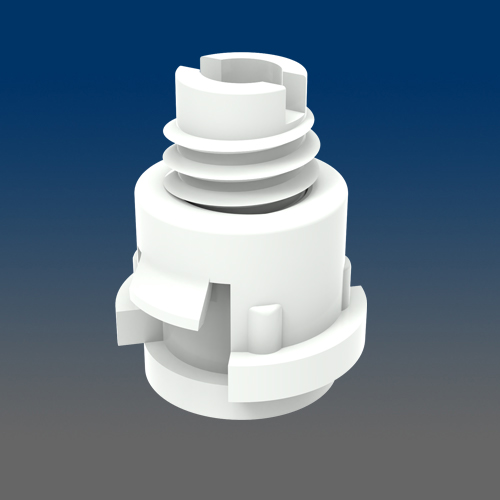

  • 1040-41B

  • DESCRIPTION:
    Jamb adjuster, assembly of 1040 & 1041B
  • MATERIAL: PLASTIC
  • Patented
1040-41B-jambadjusters-plastic
pdf_dowload

Please login to download CAD files.

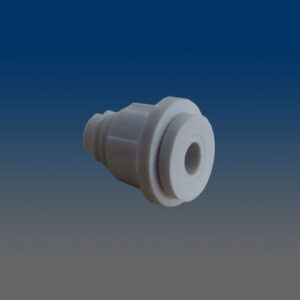

  • 1040S

  • DESCRIPTION:
    Nut, ShimTech, plastic, 3/8-16 x .408"
  • MATERIAL: PLASTIC
  • KIT: 41A
  • Patented
1040S-jambadjusters-plastic
pdf_dowload

Please login to download CAD files.

  • 1041B

  • DESCRIPTION:
    Screw, ShimTech, plastic, 3/8-16 x .75"
  • MATERIAL: PLASTIC
  • Patented
1041B-jambadjusters-plastic
pdf_dowload

Please login to download CAD files.

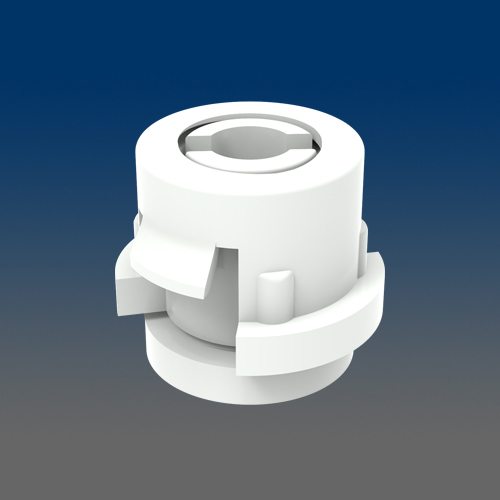

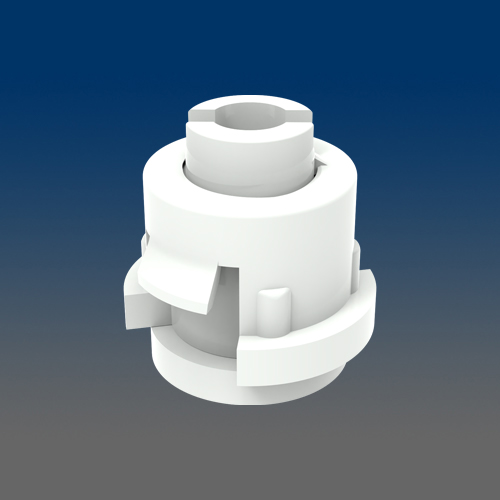

  • 1049

  • DESCRIPTION:
    Nut, ShimTech, 3/8-16 x .408", with flexible barbs, plastic
  • MATERIAL: PLASTIC
  • KIT: 41C
  • Patented
1049-jambadjusters-plastic
pdf_dowload

Please login to download CAD files.

  • Concept 3200A

  • DESCRIPTION:
    1.5" Jamb Adjuster
pdf_dowload

Please login to download CAD files.

  • Concept 3200B

  • DESCRIPTION:
    1 & 1/8" Jamb Adjuster
pdf_dowload

Please login to download CAD files.
